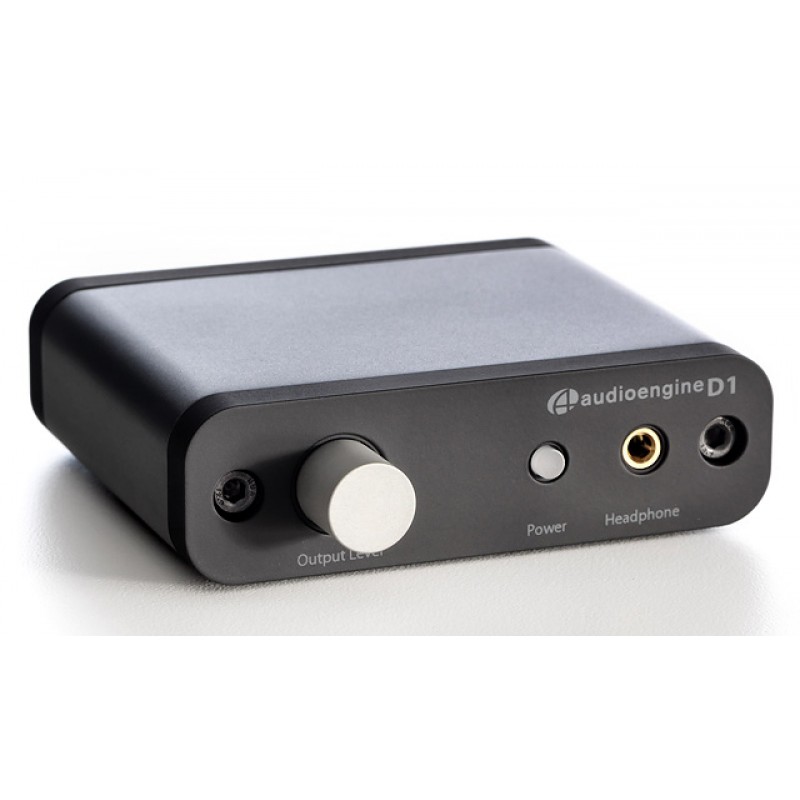

Audioengine D1
Premium 24-bit DAC
(digital-to-analog converter)
| Audioengine D1 Premium 24-bit DAC | Audioengine D1 Premium 24-bit DAC (digital-to-analog converter) allows you to bypass your computer's soundcard or headphone output and send audio through USB or optical. D1 is the perfect digital interface between your computer and music system and will improve the sound of ALL your music. |
| Versatile | The D1 accepts inputs from both USB and optical and has outputs for any audio system or headphones. The D1 DAC is the perfect way to get great-sounding music not only from your computer but also from your TV, Apple TV, DVD/BluRay player or CD player. And since it's powered by USB, D1 is also a high-quality portable computer headphone amplifier. |
| Designed for the Computer Audiophile | D1 will process digital audio at any bit depth up to 24 bits and any sample rate to 192KHz. With it's high signal-to-noise ratio and low distortion the D1 delivers sound quality generally heard only in more expensive DACs. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts. |
| Features | -Desktop or portable digital-to-analog convertor -Mac or PC plug-and-play, no drivers to install -High-performance headphone amp included -USB and optical inputs -USB-powered, no separate power supply needed -Stream bit-perfect HD audio with low jitter -Based on high-performance AK4396 DAC |
| Works With | -Any computer (Mac or PC) -Headphones -Apple TV or any product with optical outputs -Powered speakers -Any audio system with mini-jack or RCA inputs |
| What's in the box | (1) D1 DAC (1) USB cable, 2ft (0.6m) (1) Microfiber product bag (1) Setup guide (1) Product line brochure |
Audioengine D1
Premium 24-bit DAC
(digital-to-analog converter)
DAC type |
Dual Mode USB and Optical (SPDIF) |
Inputs |
USB/Optical (SPDIF) |
Outputs |
RCA stereo/3.5mm headphone |
D/A converter |
AKM4396 |
Optical receiver |
CS8416 |
USB controller |
TI1020B |
USB device class |
Type 1.1 or above |
Full-scale output |
2.0V RMS |
Output impedance |
10 ohms |
Power source |
USB 5V |
Power requirements |
5V DC, 200mA |
USB power filtering |
2-stage redundant regulation |
SNR |
(DC to 20 kHz) >110dB |
THD+N |
(1kHz FS 96kS/s) <0.0025% |
Crosstalkb |
-85db |
USB transfer mode |
Asynchronous (dual clock) |
Frequency response |
10Hz - 25KHz (+/- 0.5dB) |
Input bit depth |
16 bit, 24 bit |
Input sample rate (USB) |
32kHz-96kHz - native playback 188.2kHz, 192kHz - re-sampled to 96kHz for playback |
Input sample rate (optical) |
32kHz-192kHz - native playback |
Product dimensions |
3.5x4x1" |
Shipping weight |
1.0lbs (0.5kg) |
Environmental |
Operating Temperature: 32 to 95 degrees F Non-operating Temp: -4 to 113 degrees F Relative Humidity: 5% to 95% non-condensing |
Included accessories |
USB cable, 2ft Setup Guide Microfiber bag |
D1 USB |
The D1 utilizes the TI1020B USB controller, widely recognized as a standard for higher-end USB audio products. The D1 is powered directly from the USB bus and USB power is passed through two stages of regulation to ensure high stability and low noise. |
D1 DAC |
The D1 uses the AK4396 DAC, well regarded for its low noise and high fidelity. Due to the high signal-to-noise specs of the AK4396 and the added benefit of double redundancy power source conversion and filtering, the D1 presents impressive low noise and low distortion characteristics. |
D1 Headphone |
The D1 includes a headphone amp based on the TI OPA2134 low noise opamp. This headphone amp is able to provide low-impedance, high-fidelity audio to a wide range of headphones and supports headphones with impedance as low as 20 ohms. |
